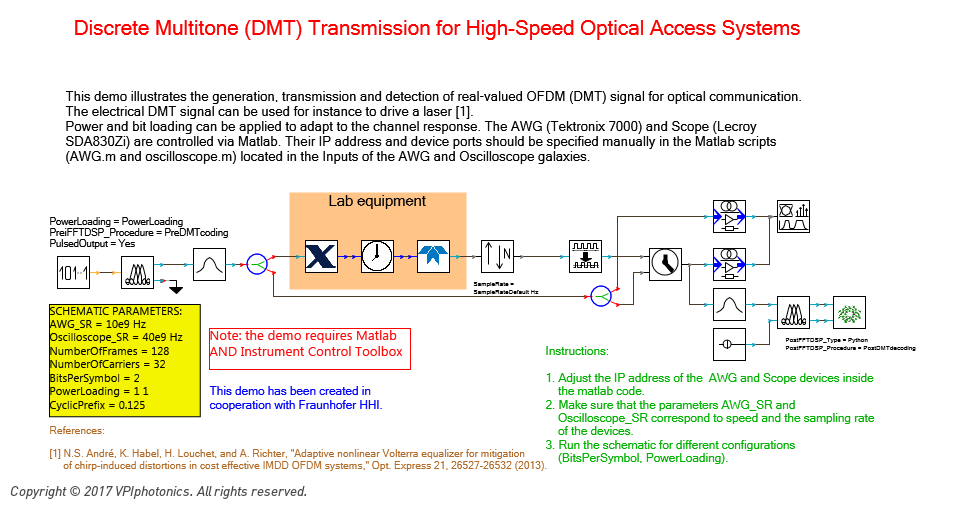

  • Discrete Multitone (DMT) Transmission for High-Speed Optical Access Systems


    This demo illustrates the generation, transmission and detection of real-valued OFDM or discrete multitone(DMT) signal for optical communication.

    Picture for Discrete Multitone (DMT) Transmission for High-Speed Optical Access Systems

    » Keywords: OFDM, Discrete Multitone, Tektronix, DMT, Matlab, Scope, AWG, Lecroy
    » Available in: Lab Expert Demos

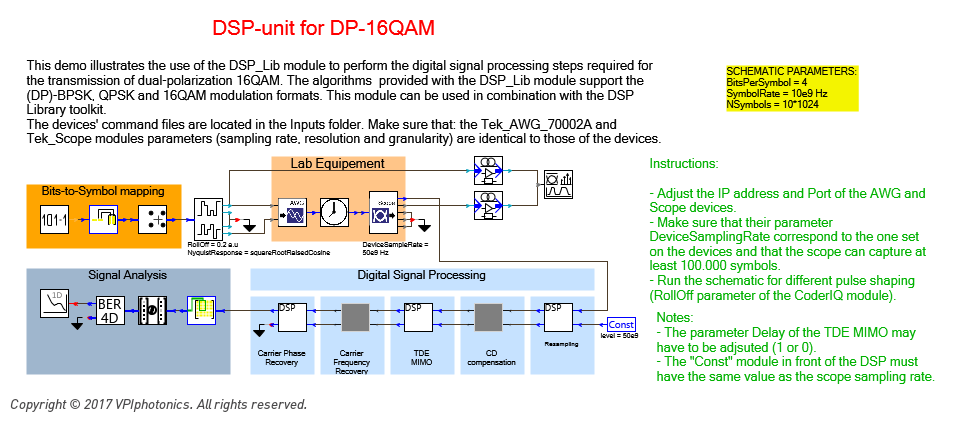

  • DSP-unit for DP-16QAM


    This demo illustrates the use of the DSP_Lib module to perform the digital signal processing steps required for the transmission of dual-polarization 16QAM.

    Picture for DSP-unit for DP-16QAM

    » Keywords: 16QAM, DSP, Tektronix, Coherent, SCPI, AWG, Scope, Digital Signal Processing
    » Available in: Lab Expert Demos, Optical System Demos

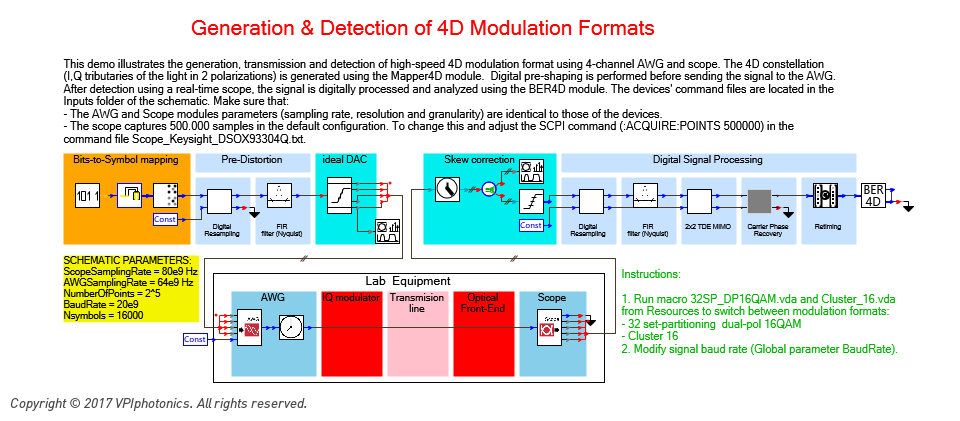

  • Generation & Detection of 4D Modulation Formats


    This demo illustrates the generation, transmission and detection of high-speed 4D modulation format using 4-channel AWG and scope.

    Picture for Generation & Detection of 4D Modulation Formats

    » Keywords: Keysight, Oscilloscope, Agilent, DSP, Sampling Scope, AWG, QAM, 4D, Real Time
    » Available in: Lab Expert Demos

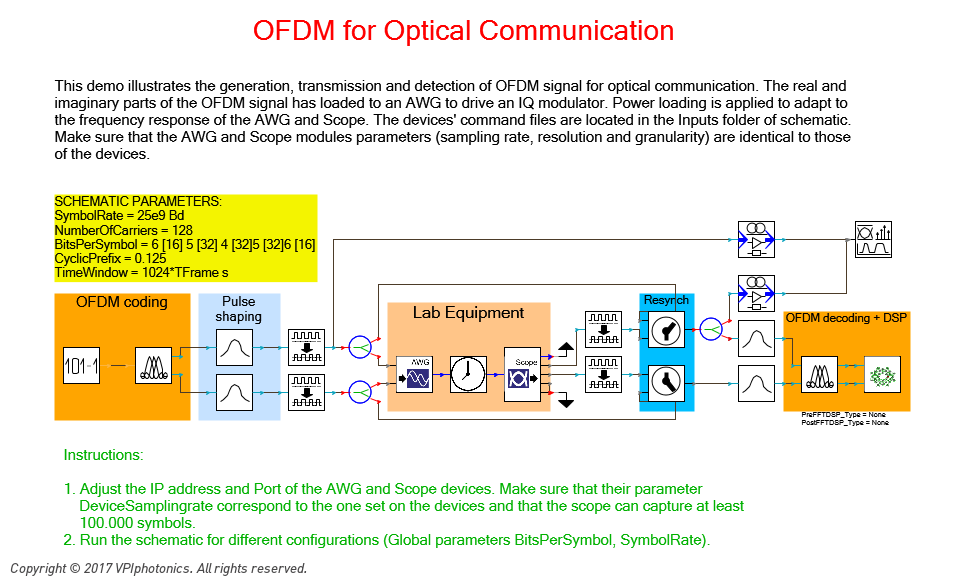

  • OFDM for Optical Communication


    This demo illustrates the generation, transmission and detection of OFDM signal for optical communication.

    Picture for OFDM for Optical Communication

    » Keywords: OFDM, Oscilloscope, Tektronix, Sampling Scope, AWG, Real Time
    » Available in: Lab Expert Demos

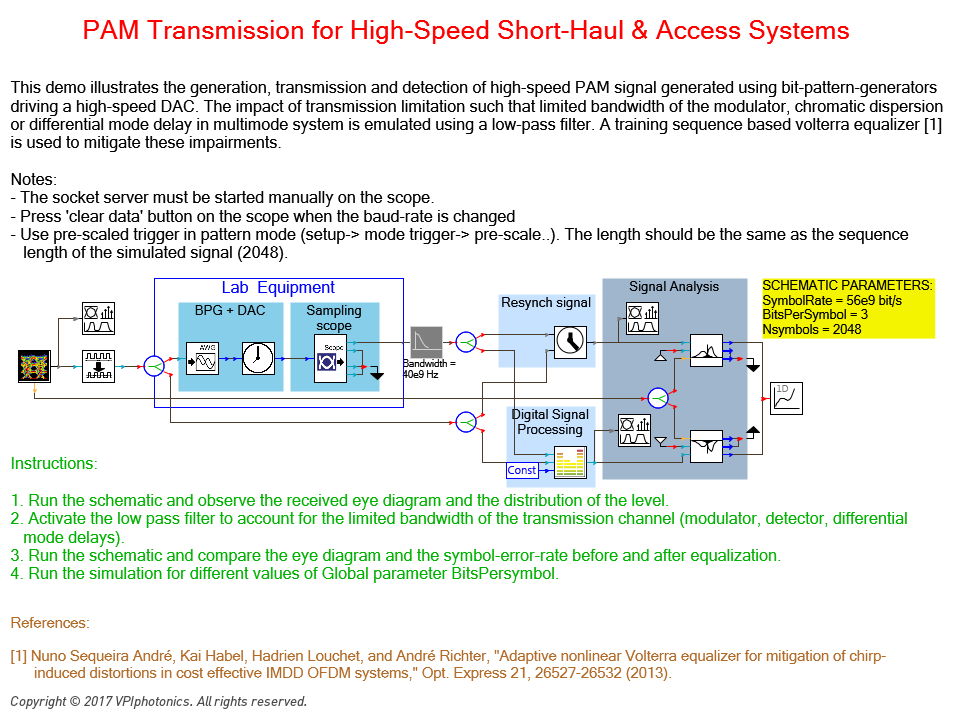

  • PAM Transmission for High-Speed Short-Haul & Access Systems


    This demo illustrates the generation, transmission and detection of high-speed PAM signal generated using bit-pattern-generators driving a high-speed DAC.

    Picture for PAM Transmission for High-Speed Short-Haul & Access Systems

    » Keywords: 4PAM, Oscilloscope, Sampling Scope, 8PAM, SHF, AWG, PAM, Real Time
    » Available in: Lab Expert Demos

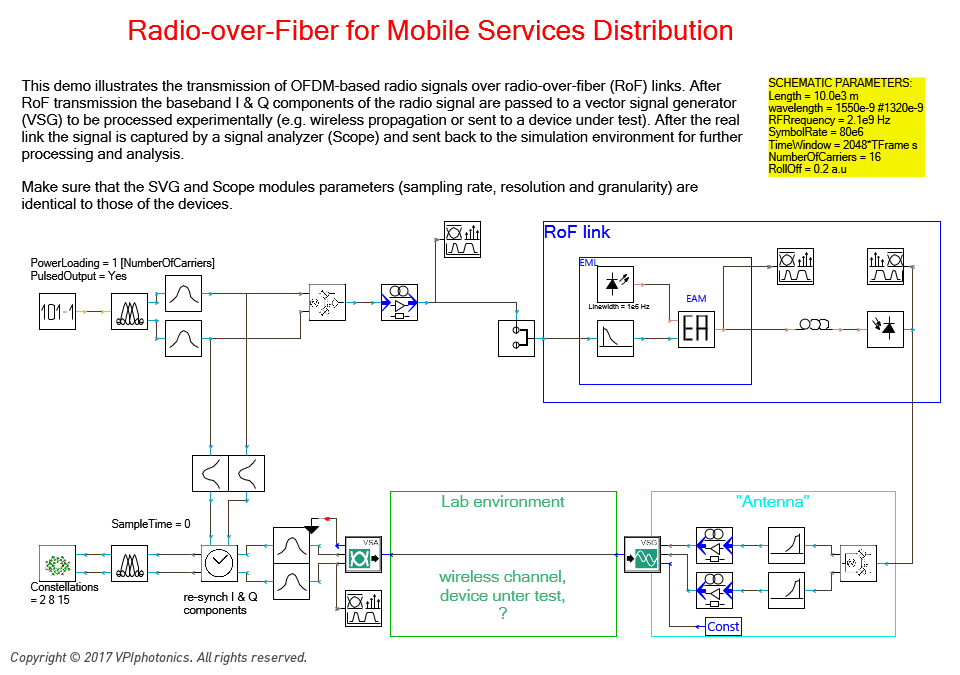

  • Radio-over-Fiber for Mobile Services Distribution


    Radio over fiber mobile service distribution.

    Picture for Radio-over-Fiber for Mobile Services Distribution

    » Keywords: Anritsu, OFDM, RoF, wireless, 4G, radio, VSG, AWG, Scope, 5G, SA
    » Available in: Lab Expert Demos
