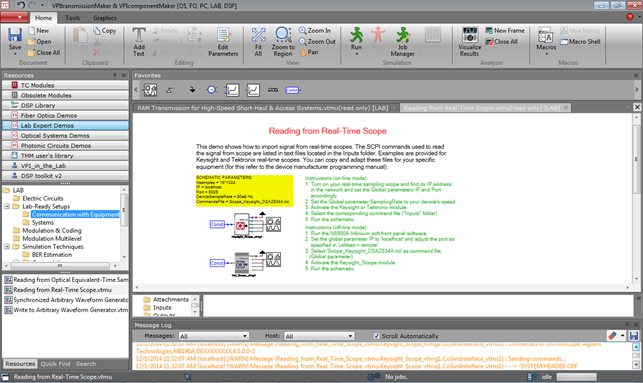

• Native instrument interface based on SCPI over TC/IP

  • VISA standard via Matlab or Python co-simulation

  • Extensive library of ready-to-use lab modules supporting, for instance, Keysight and Tektronix AWG and scopes

  • Automated optimization using scripts (Matlab, Python, tcl)

  • Arbitrary constellations in 2 and 4 dimensions including mQAM, CmQAM and 4D set-partitioning formats

  • Single and multicarrier modulation (e.g. OFDM, Nyquist WDM)

  • Advanced visualization and analysis tools (BER, EVM, eye-diagram, spectrum, ...)

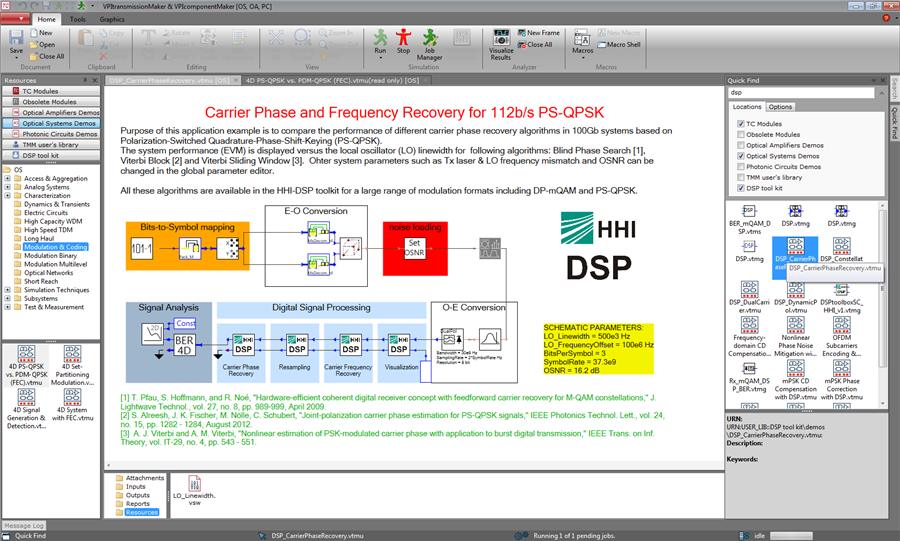

  • Extensive library of algorithms for DSP-based equalization (MIMO filter, Back-propagation, Viterbi & Viterbi, MLSE, ...) and FEC (LDPC, Hamming)

  • Pluggable Toolkit with lab-proven DSP libraries developed by Fraunhofer HHI

  • Analysis of radio over fiber (RoF) and microwave transmissions (SNR,CNR,IMD3,IP3,...)

  • List of common functionalities available in the VPIphotonics Design Suite™ software environment
