VPIphotonics – Doped Fiber Amplifiers

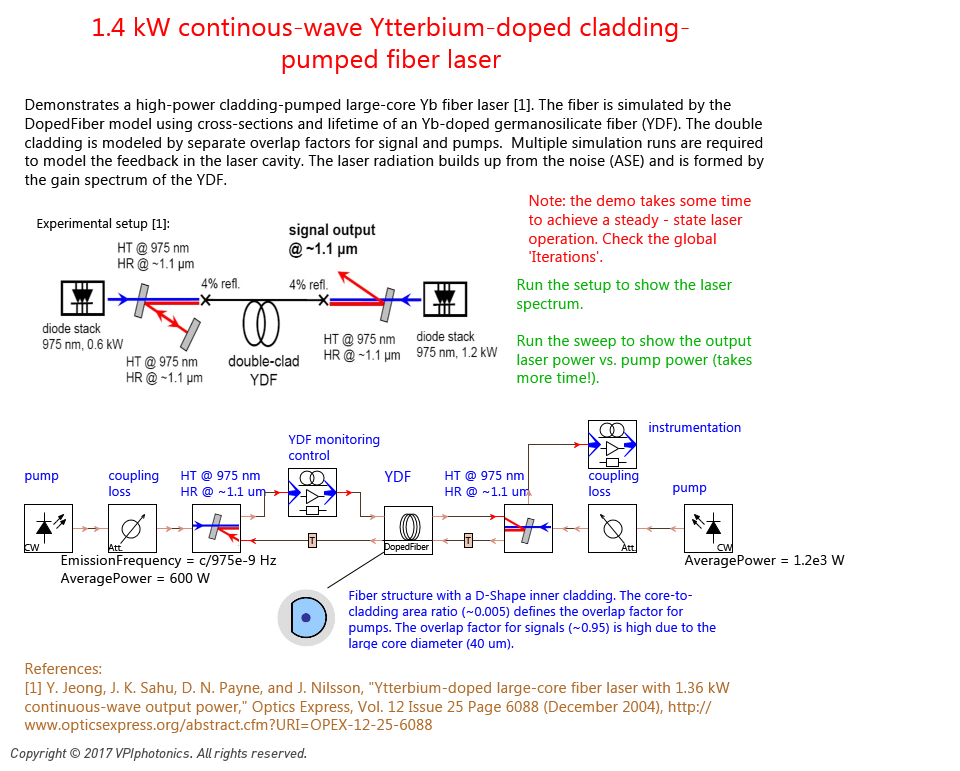

• 1.4 kW continous-wave Ytterbium-doped cladding-pumped fiber laser


  Demonstrates a high-power cladding-pumped large-core Yb fiber laser.



  » Keywords: Giles model, YbDFA
  » Available in: Fiber Optics Demos

  hide

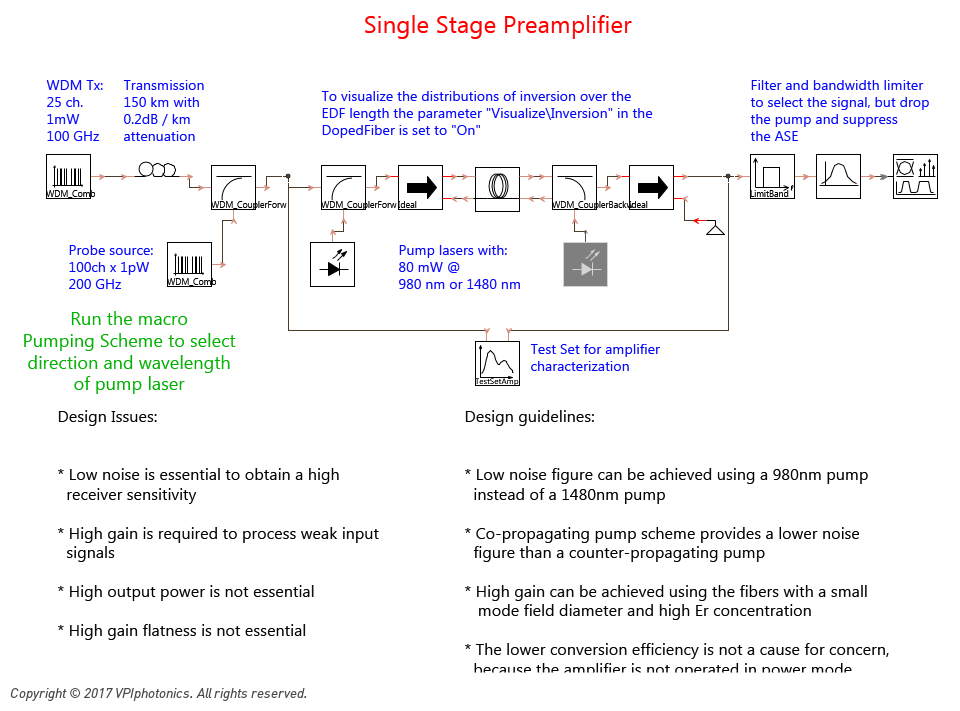

• Single Stage Preamplifier


  A single-stage forward- or backward- pumped (980 nm or 1480 nm) doped fiber amplifier. The pumping direction and wavelength are set using an attached script, so the differences in pumping schemes can be easily compared.



  » Keywords: EDFA, Forward pump, Preamplifier, Backward pump
  » Available in: Fiber Optics Demos

  hide

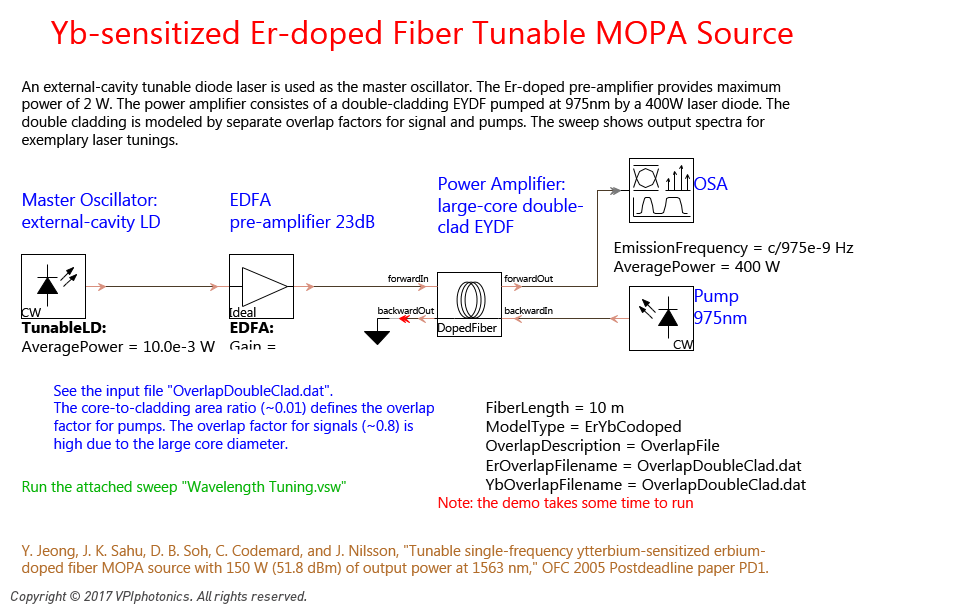

• Yb-sensitized Er-doped Fiber Tunable MOPA Source


  Demonstrates an Yb-sensitized Er-doped fiber tunable MOPA source.



  » Keywords: Double Cladding, Yb, EYDF, Source, MOPA, Er
  » Available in: Fiber Optics Demos

  hide

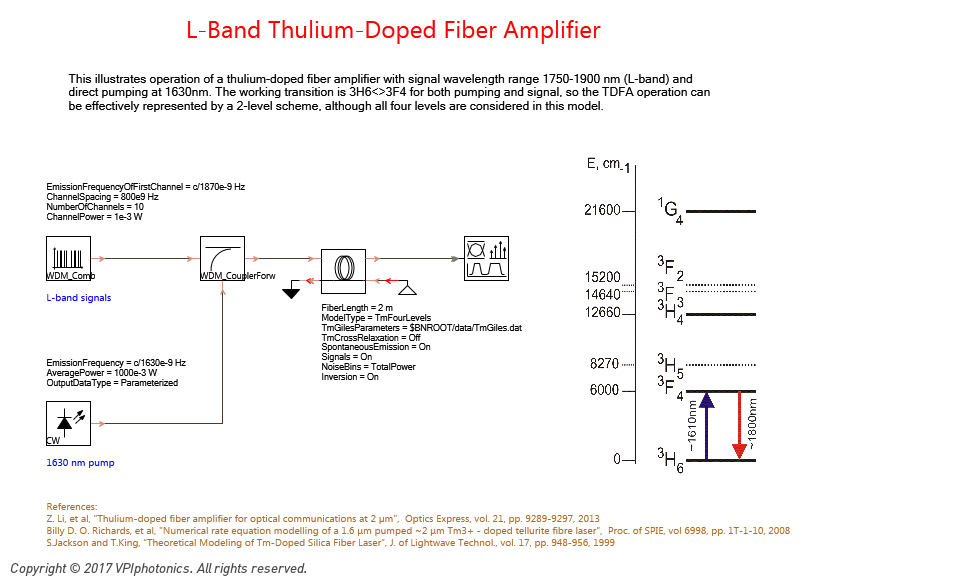

• L-Band Thulium-Doped Fiber Amplifier


  Illustrates operation of a thulium-doped fiber amplifier with signal wavelength range 1750-1900 nm (L-band) and direct pumping at 1630nm.



  » Keywords: Optical Amplifier, Thulium, TDFA, Stationary, L band
  » Available in: Fiber Optics Demos

  hide

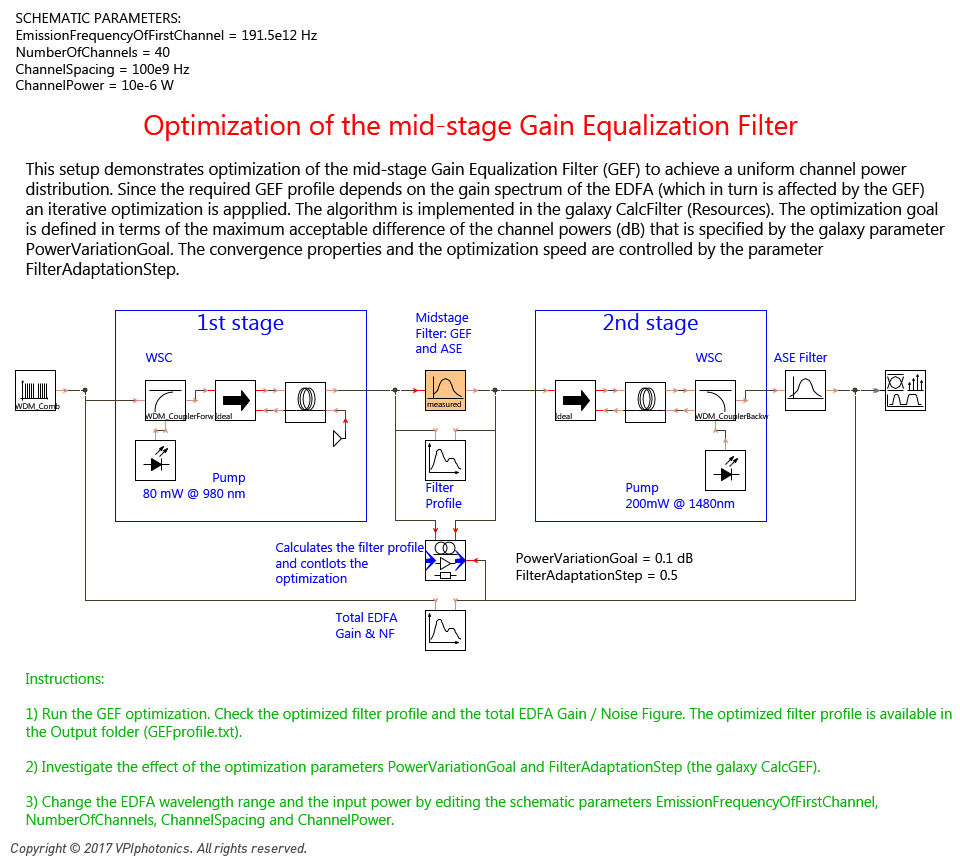

• Optimization of the mid-stage Gain Equalization Filter


  Shows optimization of the mid-stage Gain Equalization Filter (GEF) to achieve a uniform channel power distribution.



  » Keywords: Two stage, Gain equalization filter, C-band, EDFA, Optimization, Forward pump, Backward pump
  » Available in: Fiber Optics Demos

  hide

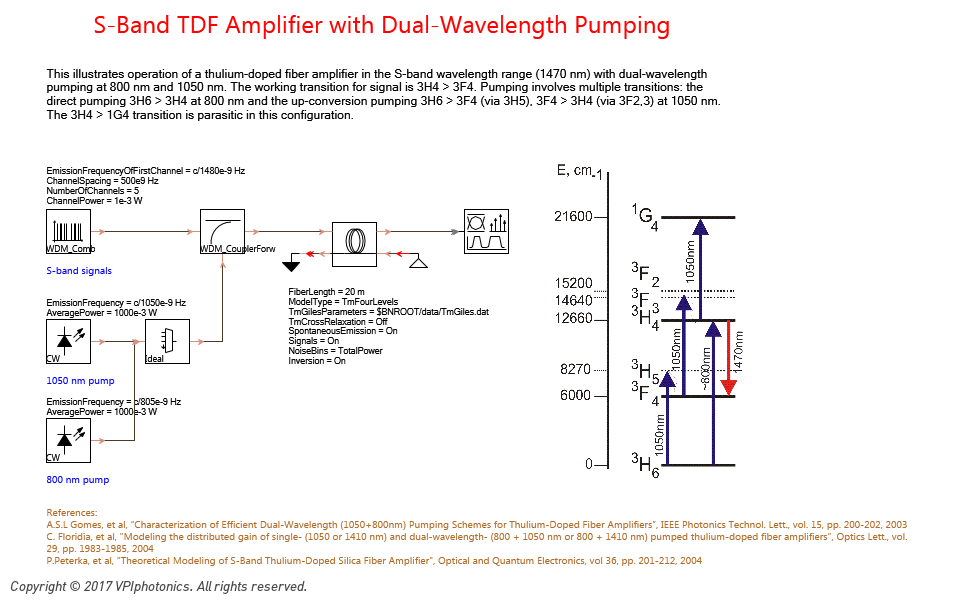

• S-Band TDF Amplifier with Dual-Wavelength Pumping


  Illustrates operation of a thulium-doped fiber amplifier in the S-band wavelength range (1470 nm) with dual-wavelength pumping at 800 nm and 1050 nm.



  » Keywords: Dual-Wavelength Pumping, S band, Optical Amplifier, TDFA, Upconversion, Thulium, Stationary
  » Available in: Fiber Optics Demos

  hide

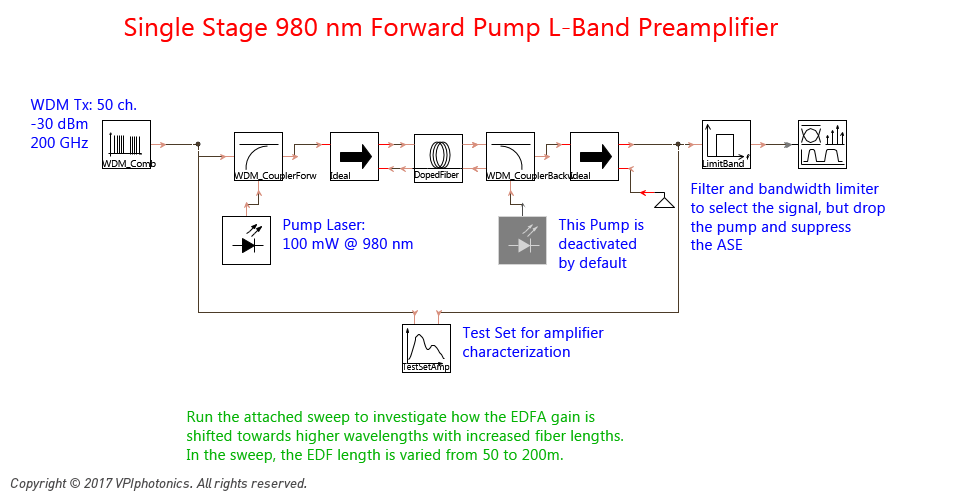

• Single Stage 980 nm Forward Pump L-Band Preamplifier


  A single-stage forward-pumped (980 nm) doped fiber amplifier for L-band. It uses a very long, low-doping level, fiber. The ASE from the input part of the fiber is used to pump the output end of the fiber.



  » Keywords: EDFA, Single stage, Forward pump, L-band
  » Available in: Fiber Optics Demos

  hide

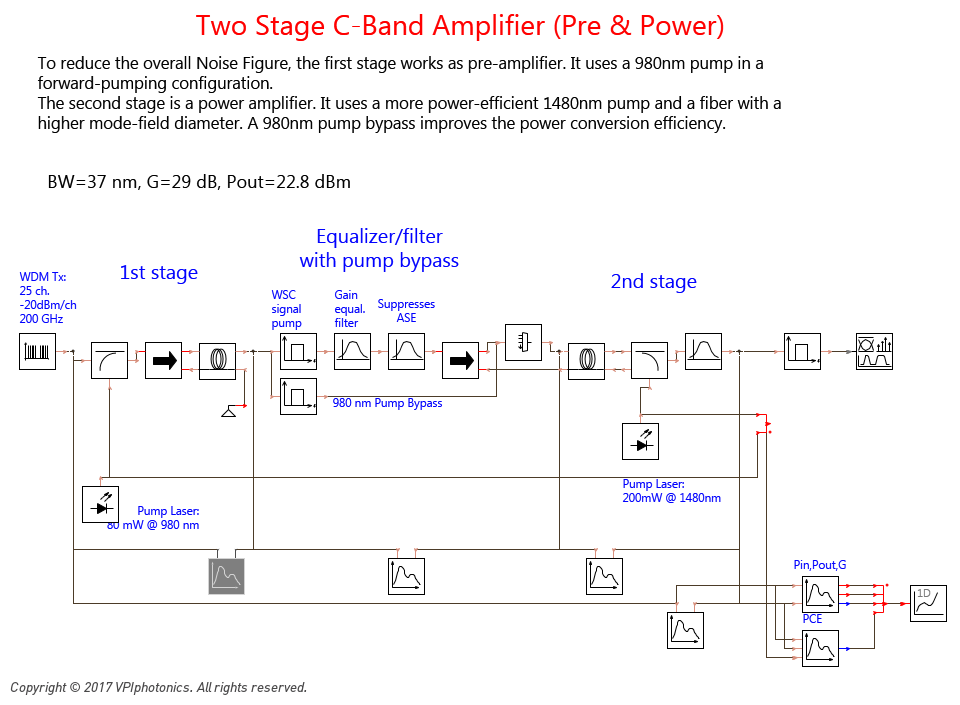

• Two Stage C-Band Amplifier (Pre & Power)


  A forward-pumped preamplifier is combined with a reverse-pumped power amplifier. In between the two stages is a gain flattening filter, with a pump bypass path so that the remnant pump from the first stage is used in the second stage.



  » Keywords: EDFA, Two stage, Forward pump, Backward pump, C-band
  » Available in: Fiber Optics Demos

  hide

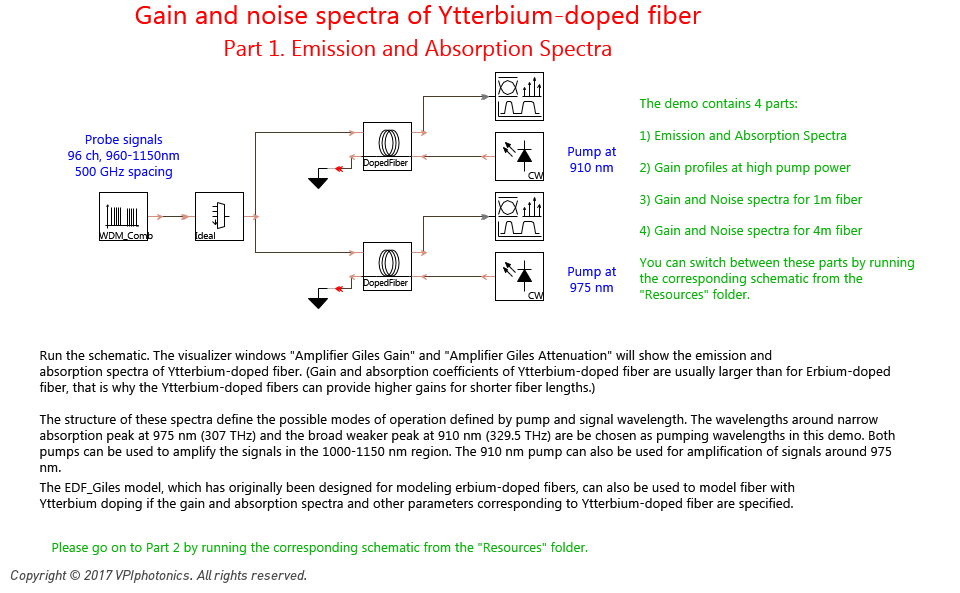

• Gain and noise spectra of Ytterbium-doped fiber


  This demo investigates the peculiarities of Gain and Noise spectra of Yb-doped fiber amplifiers with 975 and 910 nm pump.



  » Keywords: Giles model, YbDFA
  » Available in: Fiber Optics Demos

  hide

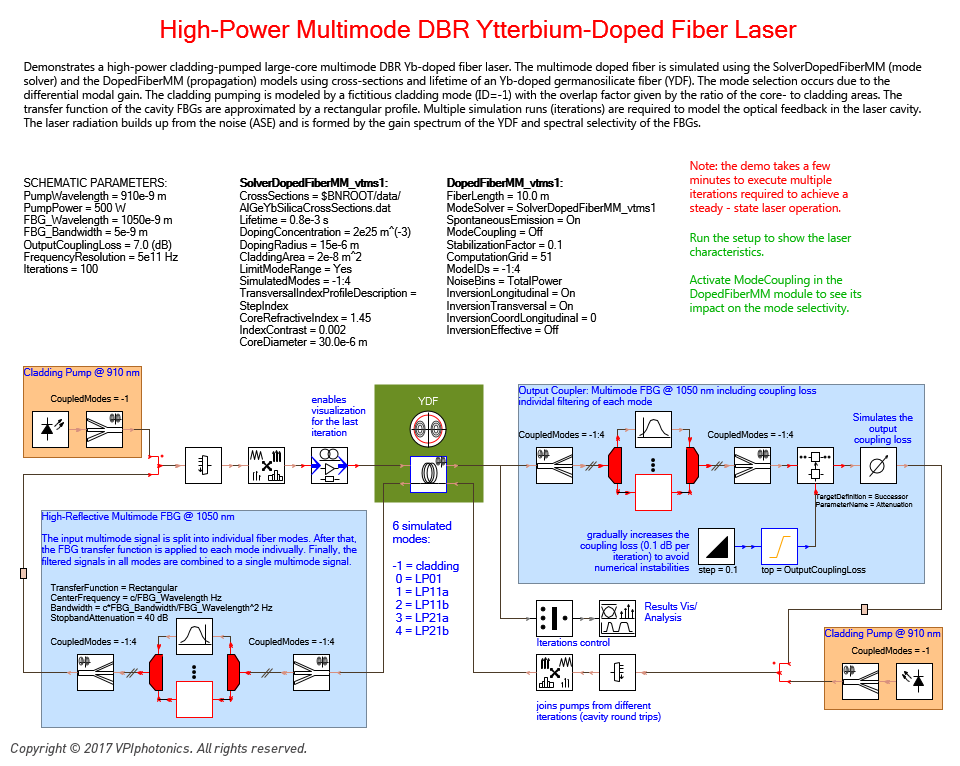

• High-Power Multimode DBR Ytterbium-Doped Fiber Laser


  Demonstrates a high-power cladding-pumped large-core multimode DBR Yb-doped fiber laser.



  » Keywords: Profile, Inversion, Fiber Laser, Yb, Emission, Ytterbium, Multimode, Population
  » Available in: Fiber Optics Demos

  hide
