VPIlinkConfigurator™ – New version 4.2 released!

VPIphotonics announces the release of VPIlinkConfigurator Version 4.2, a versatile software tool for optical link engineering including automatic equipment placement and configuration and a thorough system-wide performance assessment. It supports equipment configuration and detailed performance calculation of complex networks including ROADMs and true ring topologies. A powerful API enables interfacing with third-party software such as common office applications and databases in addition to custom applications.


Among the new features in version 4.2 are enhancements of the user interface and design automation tools as well as enhancements in simulation capabilities comprising new design and analysis tools for high bit rate connectivity requests. With the improved capabilities provided in version 4.2, VPIlinkConfigurator continuously supports its existing and addresses new applications.

Among the new features of version 4.2 are

  • Extended Gaussian noise model – a new model for assessment of OSNR degradation caused by nonlinear interference noise (NLIN). It accounts for DWDM signal parameters such as signal power, modulation format, and channel spacing as well as parameters of transmission fiber

  • Raman optical amplifier model – a new model that excludes overestimation of nonlinear effects and OSNR which is typical for lumped modeling of forward-pumped Raman amplifiers

  • Amplifier gain tilt mode – amplifier gain tilt is calculated automatically now as well as specified manually via amplifier parameter; simplifiers compensation of a tilt in DWDM signal caused by fiber attenuation profile

  •

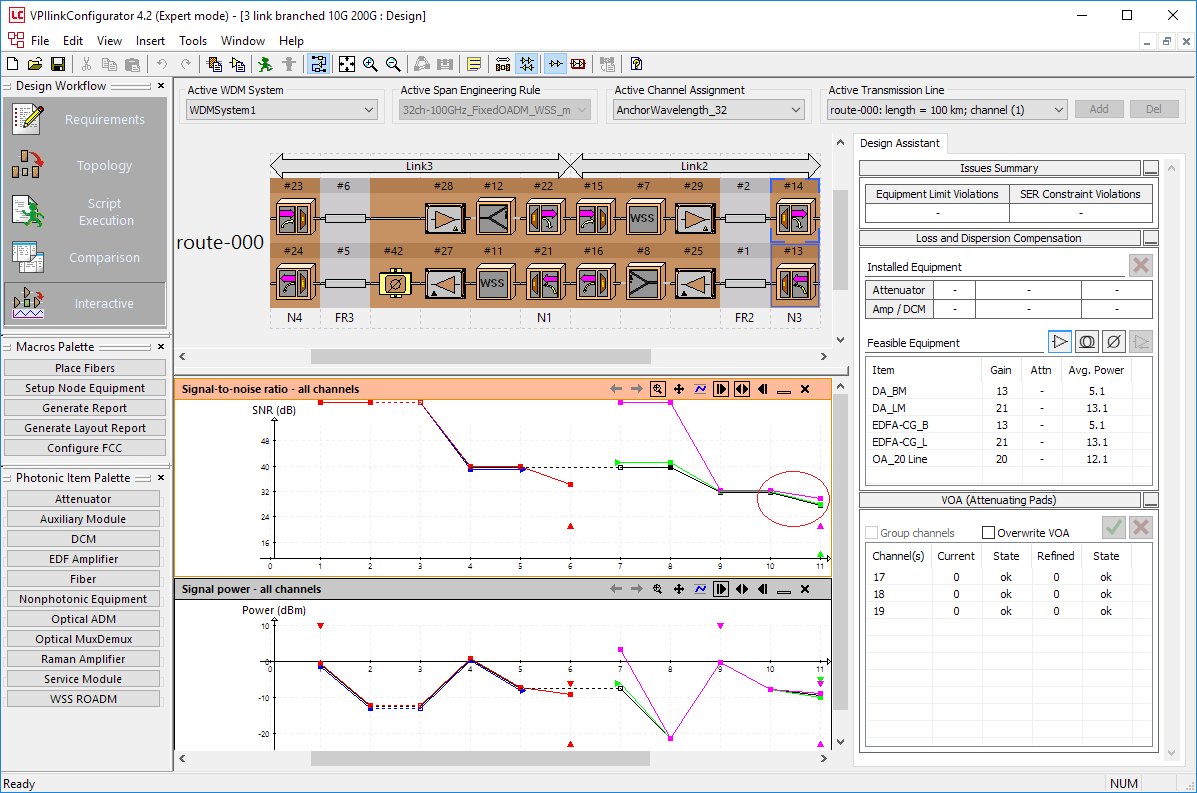

NLIN induced OSNR degradation
NLIN induced OSNR degradation

  • Fixed OADM configurations – new functionality of the Setup Equipment tool enabling configuration of Add/Drop equipment in n-degree nodes without using WSS ROADMs. The tool accounts for the add/drop ports of OADMs when it allocates wavelengths to channels passing to/from different directions

  • Automated channel equalization – the enhanced functionality of Design Assistant permits for per-channel attenuation of the added channels and of the channels passing through add-drop connections of OADMs

  • Optional and mandatory devices – a new model of allocation of auxiliary devices such as management and power supply modules required by chassis which are reported in the Bill Of Materials

  • Equipment Configuration Report – a new tool enabling visualization of optical equipment layout including port-based transponders and VOAs as well as (R)OADMs, amplifiers, and attenuating pads

  •

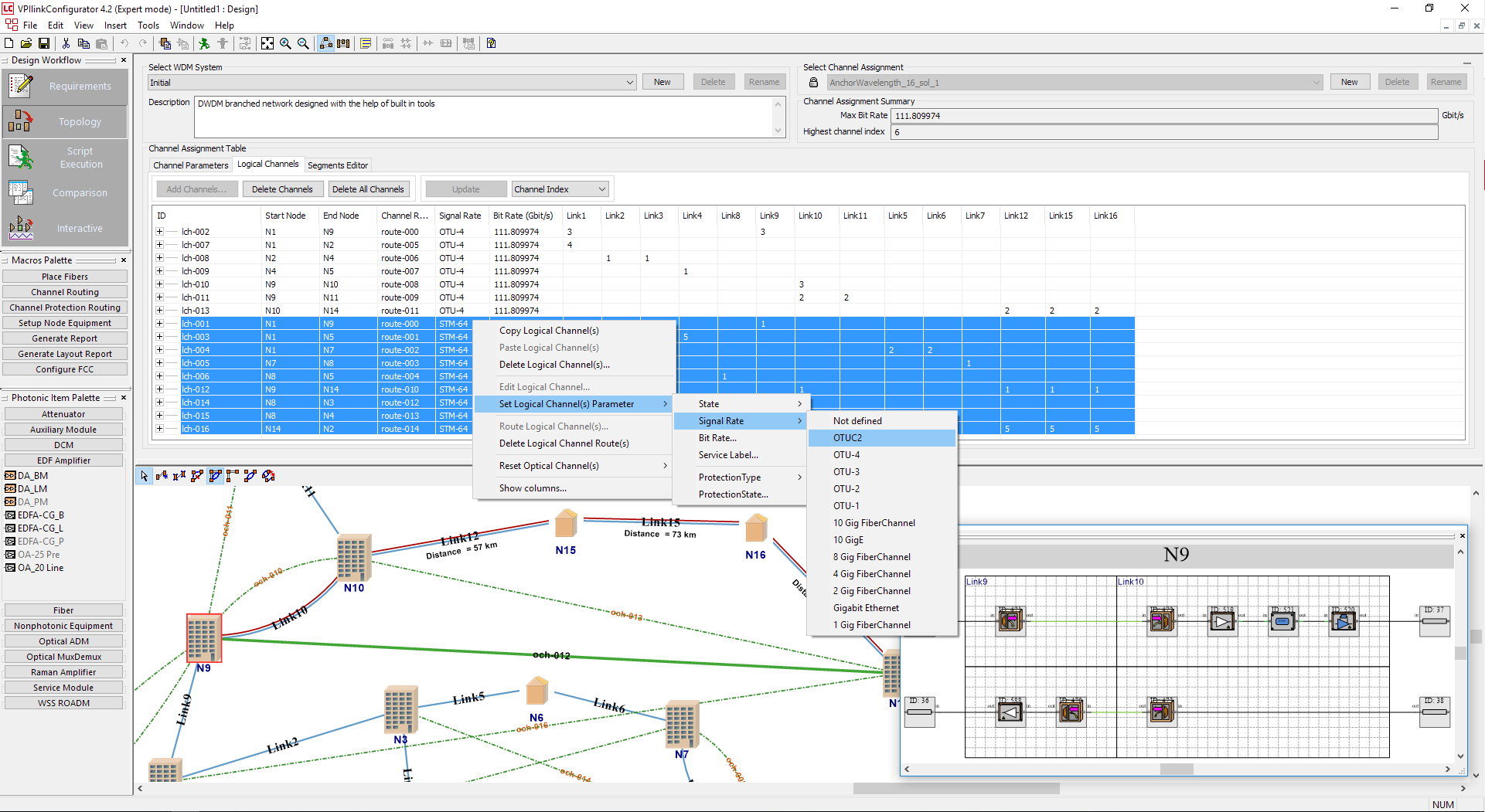

  • Multiple channel editing – a new control enabling easy setting of parameters in the Channel Assignment table

  •

  • Equipment Icons – extended range of supported image file formats

  • Node View – improved visualization of equipment layout enabling automatic arrangement of components

  •

  • Faster simulation – optimization of simulation engine results in faster execution of equipment transfer functions and performance chart update


Sign up for a product demonstration and evaluation NOW!
