Ring-loaded Mach-Zehnder Interferometer

  • Description

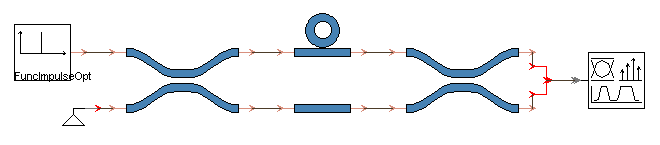

    This application example represents a device named ring-loaded Mach-Zehnder which comprises a Mach-Zehnder Interferometer with a delay ring in one of its arms (Figure 1). This arrangement might perform as an interleaver filter or as an optical filter with a flat response, depending on the length of the ring and the path difference at the upper and lower branches.

  • Typical Results

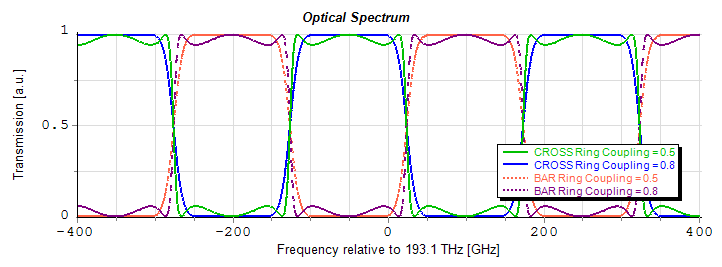

    In this design, the length difference has been chosen one-half of the length of the ring so it features an interleave filter. The resultant FSR is given by FSR = c / n_g*LengthDifference, with "c" being the velocity of light, "n_g" representing the group index and "LengthDifference" showing the length difference between upper and lower arms. The flatness and the extinction ratio depend on the coupling coefficient at the couplers and the ring-waveguide coupling. Figure 2 shows the transfer function of the cross and bar outputs for two values of the ring coupling.

  • Further Information

    Keywords: Ring coupler, Ring-loaded, MZI, Photonic Integrated Circuits, PICs
