Examples

  • Link emulation for DSP stress test & benchmark

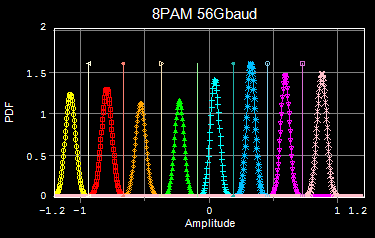

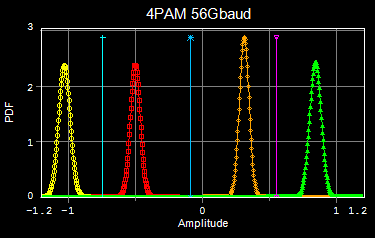

  • Performance analysis of complex modulation formats

  • Automated optimization of experimental settings

  • Components characterization


»DMT vs. PAM for 100G Transmissions

Lab Interfacing

The application examples listed illustrate VPIlabExpert‘ unique pre-& post-processing and analysis capabilities for the lab. Signals with complex modulation can be generated, passed to an AWG, captured from a scope, processed and analyzed. Issues like devices- and transmission-induced impairments, their mitigation using digital signal processing or the impact of components limitation on system performance can be addressed.

VPIlabExpert products come with an extensive library of ready-to-use lab modules supporting, for instance, Keysight and Tektronix AWG and scopes.
