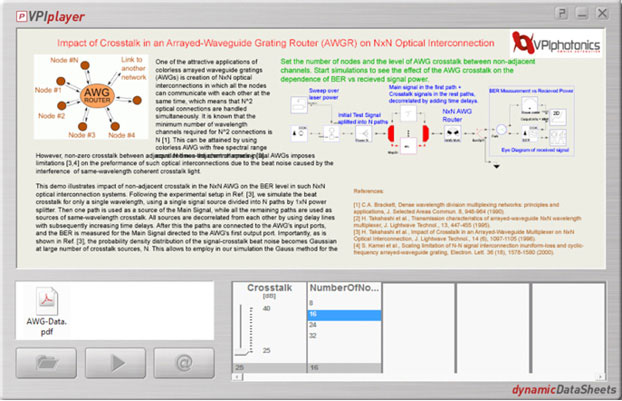

A DDS captures product parameters, performs a live simulation and generates the results on scopes, spectrum analyzers, histograms, Poincaré spheres and XY graphs. Company logos, contact details and supporting information can also be included. Interactive settings allow end users to adjust parameters using predefined sliders.
To create a DDS, the developer simply saves schematics built in VPItransmissionMaker or VPIcomponentMaker in the VPIplayer format. An extensive library of over 60 dynamicDataSheets is installed together with VPIplayer.
